GRANT - Heating Block/Dry Block Heater

GRANT - 히팅 블럭/ 드라이 블록 히터

The dry block heating systems combines digital temperature control for precision, and uniformity.
Applications
A source of precision temperature control for general, routing applications and sensitive analytical procedures including enzyme digestions, enzyme activity studies and nucleid acid hybridisations

fileDry_Block_Heaters_Operating_Manual_ML.pdf fileDry_Block_Heaters.pdf
리스트    Print

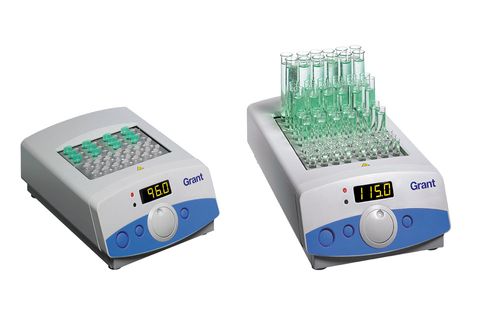

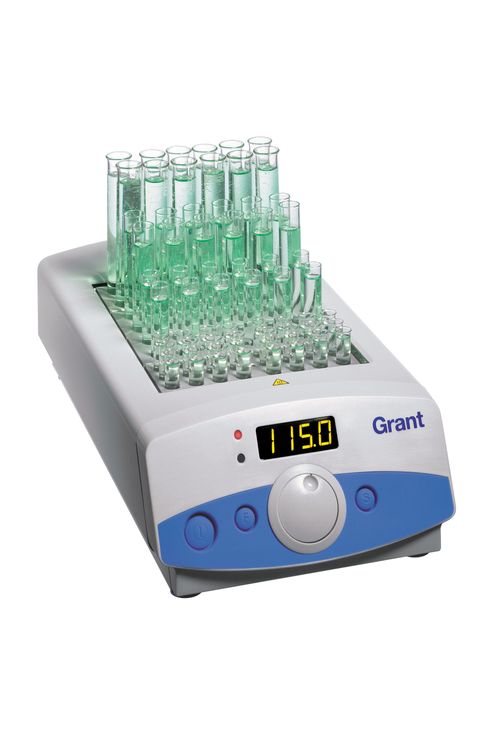

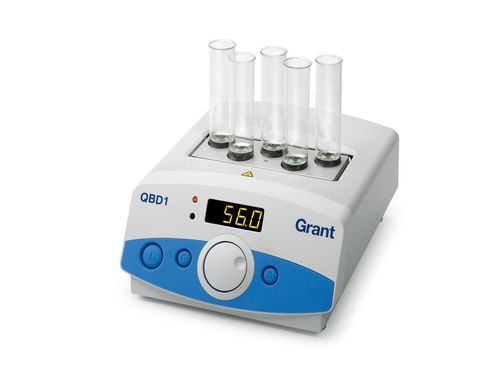

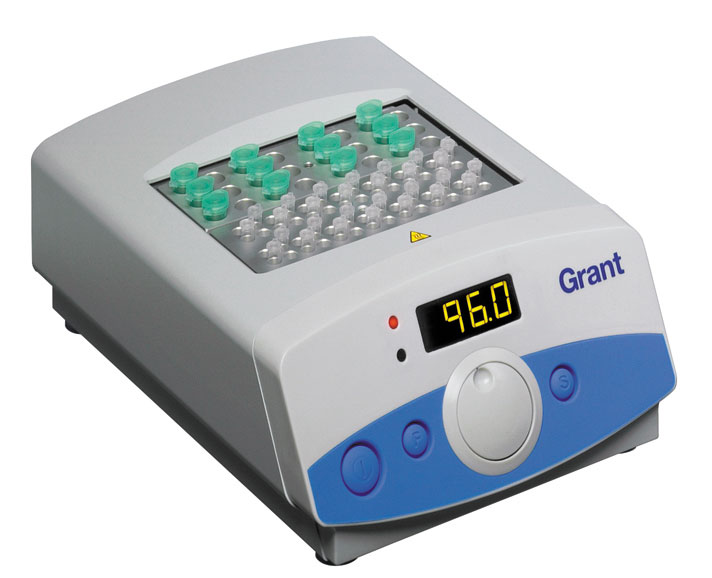

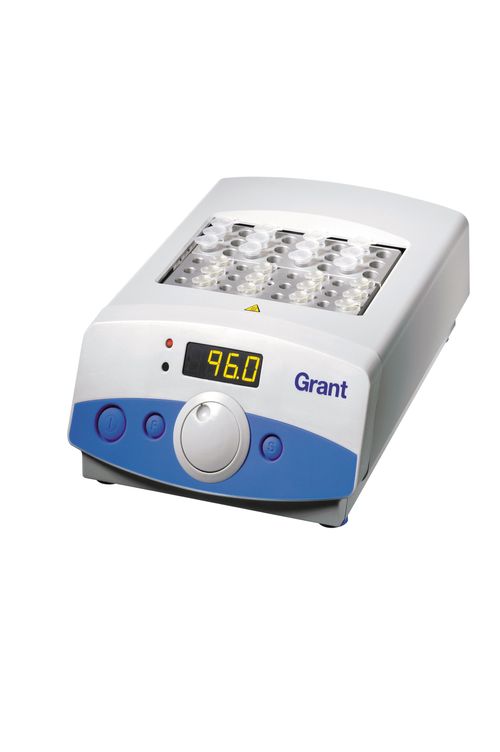

[QB Series Dry Block Heater]

다운로드 1.png

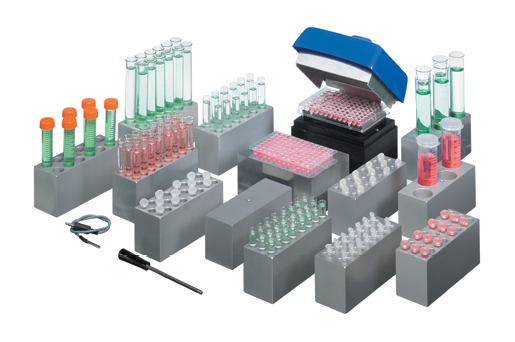

- 다양한 tube를 위한 여러 가지 block 사용 가능

- 응용: 분자생물학 실험 (DNA 추출 및 변성, PCR, ELISA, Western blotting) 등

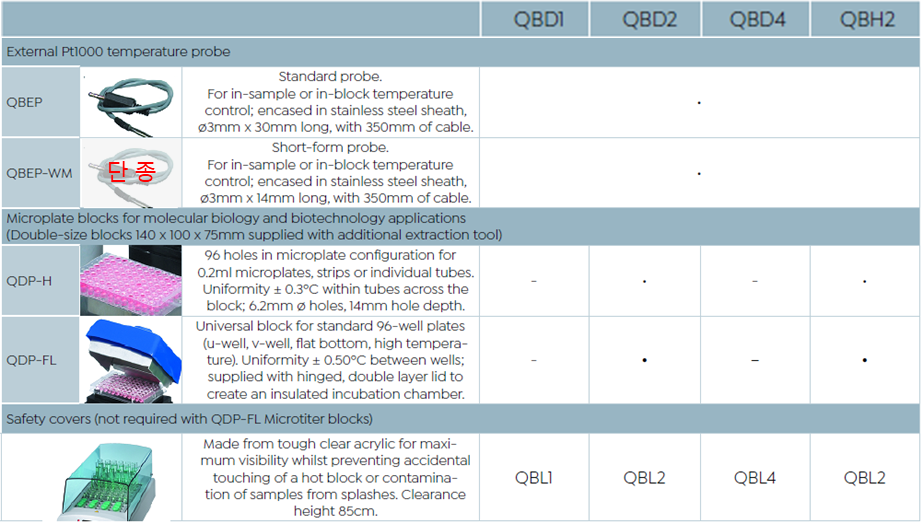

[제품사양]










About

Designed for flexibility and efficiency the block heaters come with a choice of standard and custom blocks. The versatile dry block heater series are ideal for general sample heating, research or chemistry applications.

A versatile general purpose system with removable/interchangeable blocks and a comprehensive specification to suit most dry block heating applications in the laboratory.

  • Temperature range ambient +5ºC to 130ºC, with rapid heat-up time
  • Stability: ±0.1ºC
  • Uniformity: ±0.1ºC
  • Digital temperature control for optimal precision
  • Range of convenient features including alarms, single and dual point calibration, programmed start/stop, 'offset' for known sample temperature variation and choice of external or internal probes
  • External probe available for accurate in-sample or in-block temperature control
  • Includes block removal tool for easy and safe removal of blocks.

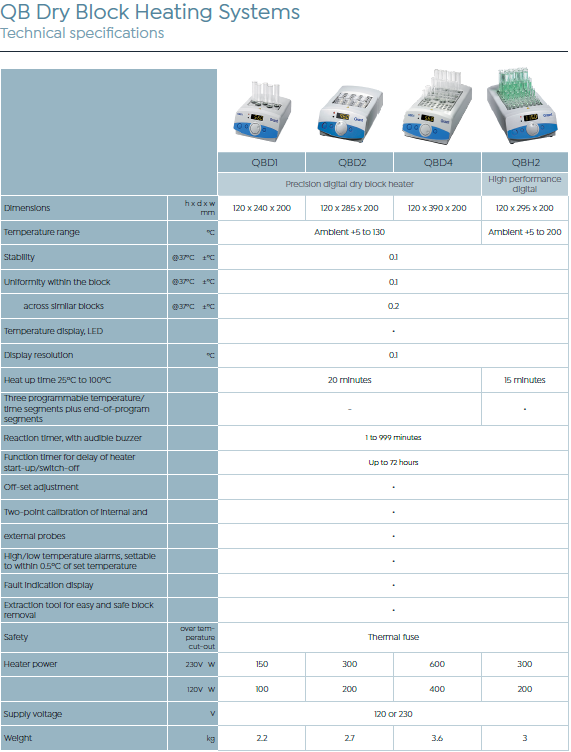

Specifications

  • High power heater for fast heat-up: 25ºC to 100ºC in only 15 minutes
  • Clear digital display - easy to read from a distance for instant reassurance
  • Convenient timer facility, with audible buzzer, for reaction timing and function timing, e.g. delayed heater switch-on/turn-off

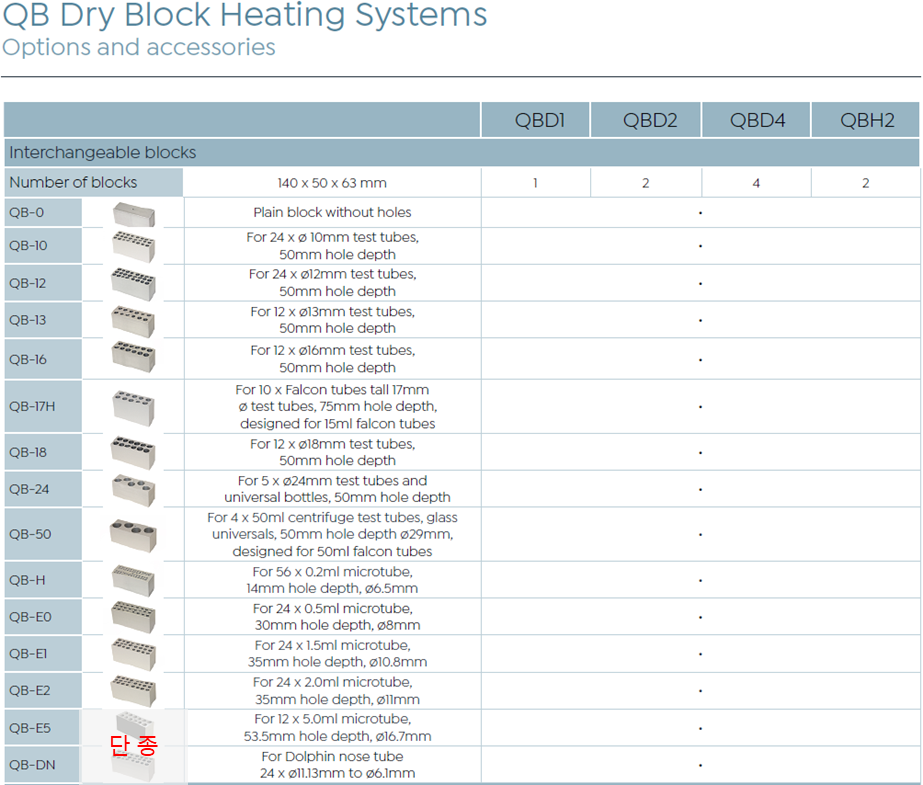

  • Wide range of interchangeable blocks enables you to mix and match sample tubes as desired - extraction tool supplied as standard for easy and safe removal of blocks.

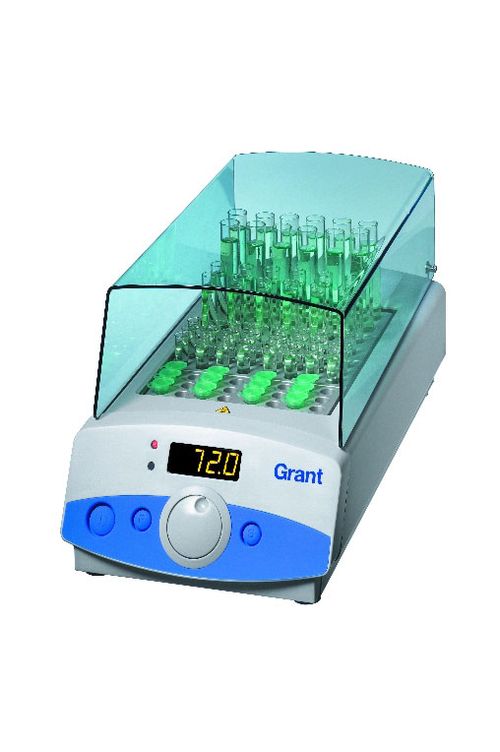

  • Optional safety cover - protects samples from contamination and users from accidental contact with hot blocks
  • Overtemperature cut-out protects your samples and your workplace
  • High quality, robust construction in streamlined coolwall aluminium and chemical-resistant plastic - durable in demanding environments
  • Compact footprint to optimise use of benchspace
  • Options include blocks for 0.2 ml tubes, strips and 96-well microtitre plates used in molecular biology and biotechnology applications (QBD2 & QBH2 only)
  • Three programmable temperature/time segments plus end-of program segments (QBH2 only)
